High-Speed CNC Cylindrical Grinding Machine

Basic Data

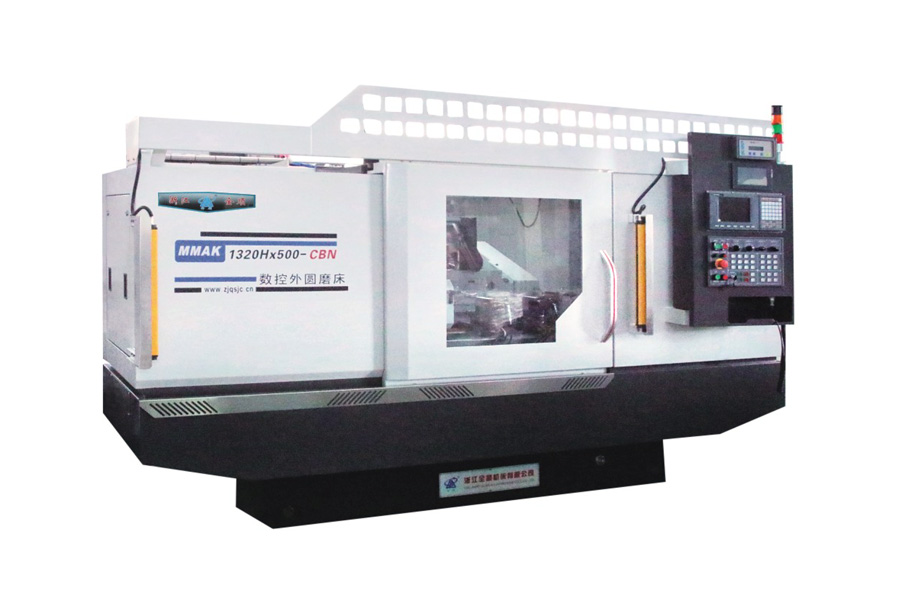

High-Speed CNC Cylindrical Grinding Machine with 100 m/s CBN Grinding Wheel

The High-Speed CNC Cylindrical Grinding Machine from Zhejiang Quanshun Machine Tool Co., Ltd. is designed for CNC external grinding of shaft-type and cylindrical workpieces with a CBN grinding wheel running at a linear speed of 100 m/s. As a professional precision grinding machine manufacturer in Zhuji, Zhejiang, we offer this high-speed cylindrical grinder in two models: MKS1320x500/750-CBN and MKS1332x600/1000/1500/2000/3000-CBN.

The MKS1320-CBN grinds external diameters from Φ8 mm to Φ200 mm, with grinding lengths of 500 mm or 750 mm and workpieces up to 50 kg. The MKS1332-CBN grinds external diameters from Φ8 mm to Φ320 mm, with five grinding length options from 600 mm to 3000 mm and workpieces up to 150 kg (500 kg on special request).

Key Features
Wheel linear speed of 100 m/s on both models.
CBN model designation: Both models are listed as CBN versions (MKS…-CBN).
CNC external grinding of cylindrical workpieces.
Two size classes: Center height 135 mm (MKS1320) and 180 mm (MKS1332).
External grinding diameter from Φ8 mm up to Φ320 mm, depending on the model.
Multiple grinding lengths: 500/750 mm (MKS1320) and 600/1000/1500/2000/3000 mm (MKS1332).
Workpiece weight: Up to 50 kg (MKS1320), up to 150 kg (MKS1332), and up to 500 kg on special request (MKS1332).
Customization available: We can design and develop non-standard special grinding machines and provide related technology, software, training services and automation solutions.

The motor power values follow the order of the grinding length options. For the MKS1332-CBN, the 600 mm and 1000 mm models use 25 kW, the 1500 mm and 2000 mm models use 28 kW, and the 3000 mm model uses 30 kW. Both MKS1320-CBN length options use 15 kW.

Model Selection Guide
MKS1320x500/750-CBN: For workpieces of Φ8–Φ200 mm and up to 50 kg, with a maximum grinding length of 500 mm or 750 mm. Center height 135 mm, Φ500 mm wheel, 100 m/s wheel speed, 15 kW total motor capacity.
MKS1332x600/1000/1500/2000/3000-CBN: For larger and longer workpieces of Φ8–Φ320 mm and up to 150 kg (500 kg special), with grinding lengths of 600, 1000, 1500, 2000 or 3000 mm. Center height 180 mm, Φ600 mm wheel, 100 m/s wheel speed, 25–30 kW total motor capacity depending on length.

Common Buyer Concerns and How This Series Addresses Them
Matching the machine to the workpiece: Diameter, length, weight, center height and wheel size are listed for every model, so your engineers can check fit before inquiring.
Power and wheel planning: Total motor capacity and wheel size are specified per model.
Heavier or longer parts: The MKS1332-CBN offers lengths up to 3000 mm, and a 500 kg workpiece option on special request.
Non-standard requirements: We can design non-standard special grinding machines and provide technology, software, training and automation solutions.

Technical Data:
  • MKS 1320-CBN
  • MKS 1332-CBN
