CNC Cylindrical Grinding Machine MK/MAK Series

CNC Cylindrical Grinding Machine MK/MAK Series for Small, Medium and Heavy Shaft Workpieces

The CNC Cylindrical Grinding Machine MK/MAK Series from Zhejiang Quanshun Machine Tool Co., Ltd. covers a wide range of shaft-type and cylindrical workpieces, from parts of Φ8 mm up to heavy workpieces of 1000 kg. As a professional precision grinding machine manufacturer in Zhuji, Zhejiang, we offer this CNC cylindrical grinder in seven model groups: MK1350B, MK1332Bx500/1000/1500/2000/3000, MKE1332Bx500/1000/1500/2000/3000, MAK1320Hx500/750, MAKE1320Hx500/750, MK1320Hx500/800 and MKE1320Hx500/800.

Buying a grinder is rarely just about the machine. You need to match the machine to your workpiece diameter, length and weight, avoid paying for capacity you will not use, and keep wheel and power planning simple. The tables below list these specifications model by model, so your engineers and purchasing team can compare them quickly and send us an accurate inquiry.

Common Buyer Concerns and How This Series Addresses Them
“Will it fit my workpieces?” Grinding diameters run from Φ8 mm to Φ500 mm, maximum grinding lengths from 500 mm to 4000 mm, and workpiece weights from 50 kg to 1000 kg across the series.
“I don’t want to overpay for capacity.” The series is split into three size classes (center height 135 mm, 180 mm and 270 mm) with matching wheel sizes and motor power, so you can select the class closest to your parts.
“I need higher wheel speed.” The MK1332B, MKE1332B, MAK1320H, MAKE1320H, MK1320H and MKE1320H models list a wheel peripheral speed of 38 m/s with a dynamic and static pressure spindle at 45 m/s.
“I need to plan power and wheel stock.” Total motor power and wheel size are listed for every model, and several models share the same wheel size, which simplifies spare wheel planning.
“My parts are non-standard.” We can design and develop non-standard special grinding machines and provide related technology, software, training services and automation solutions.

Key Features
Seven model groups in the MK, MKE, MAK and MAKE series.
Grinding diameter from Φ8 mm to Φ500 mm, depending on the model.
Maximum grinding length from 500 mm to 4000 mm.
Maximum workpiece weight from 50 kg to 1000 kg.
Three center heights: 135 mm, 180 mm and 270 mm.
Dynamic and static pressure spindle option with wheel peripheral speed up to 45 m/s on the listed models.
Customization available for non-standard grinding requirements.

Model Selection Guide

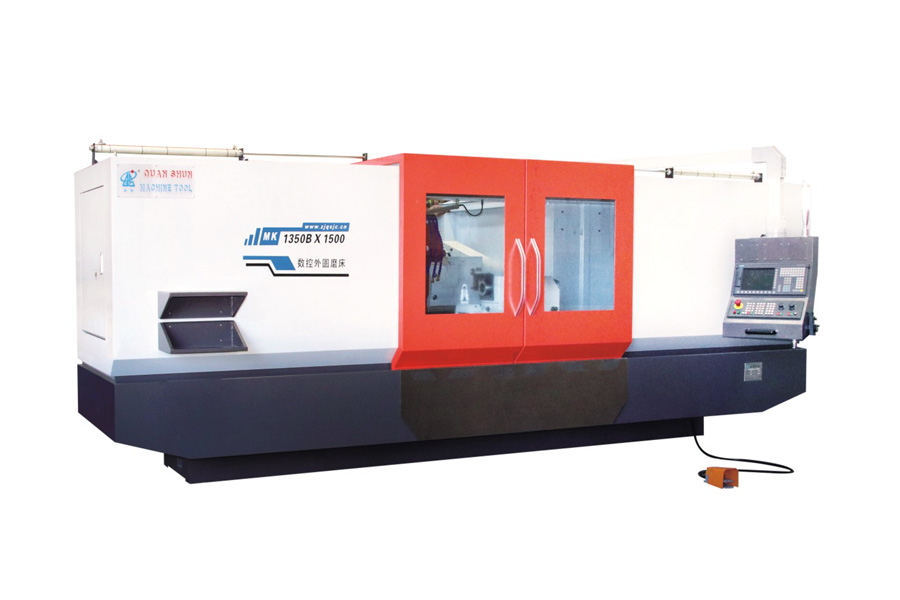

MK1350B: For the largest and heaviest workpieces: up to Φ500 mm, lengths of 1500, 2000, 3000 or 4000 mm and up to 1000 kg. Center height 270 mm, Φ750 mm wheel, 20.63 kW.

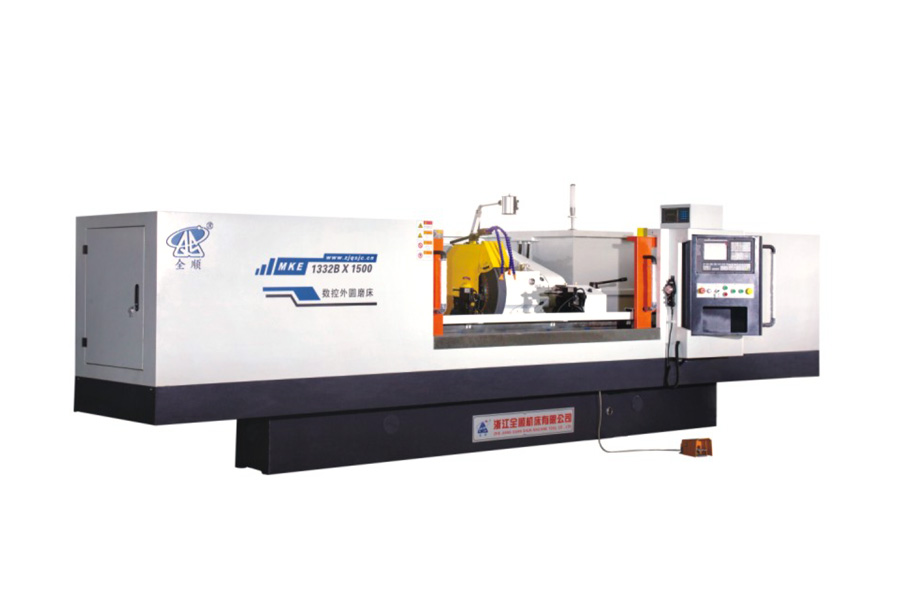

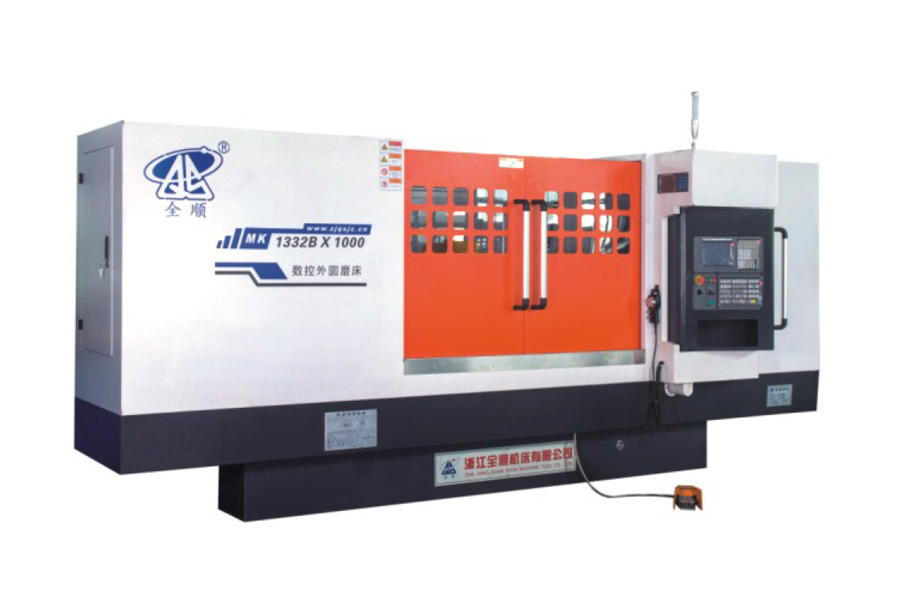

MK1332B / MKE1332B: For workpieces of Φ8–Φ320 mm, up to 150 kg, with grinding lengths of 500, 1000, 1500, 2000 or 3000 mm. Center height 180 mm, Φ600 mm wheel. Motor power rises from 21.475 kW to 33.075 kW as length increases.

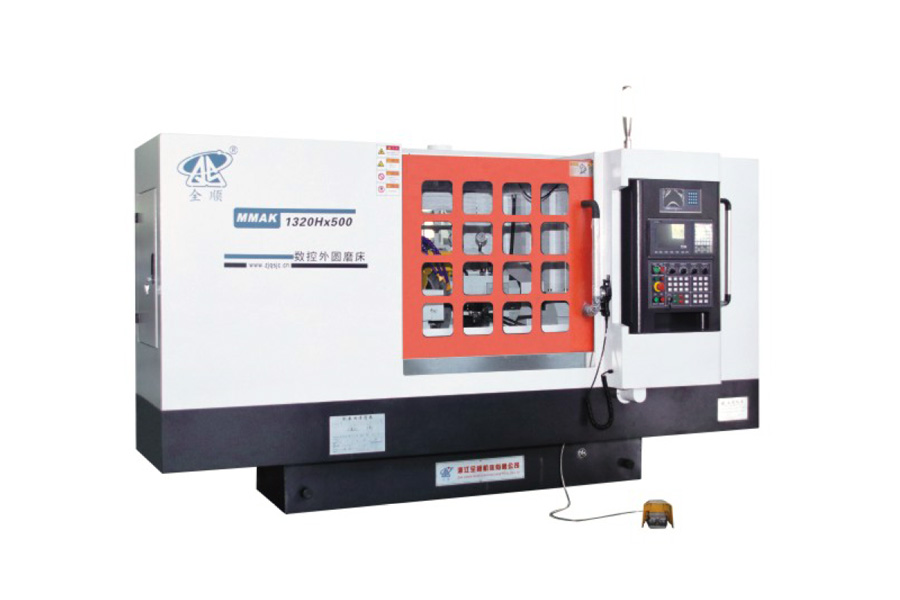

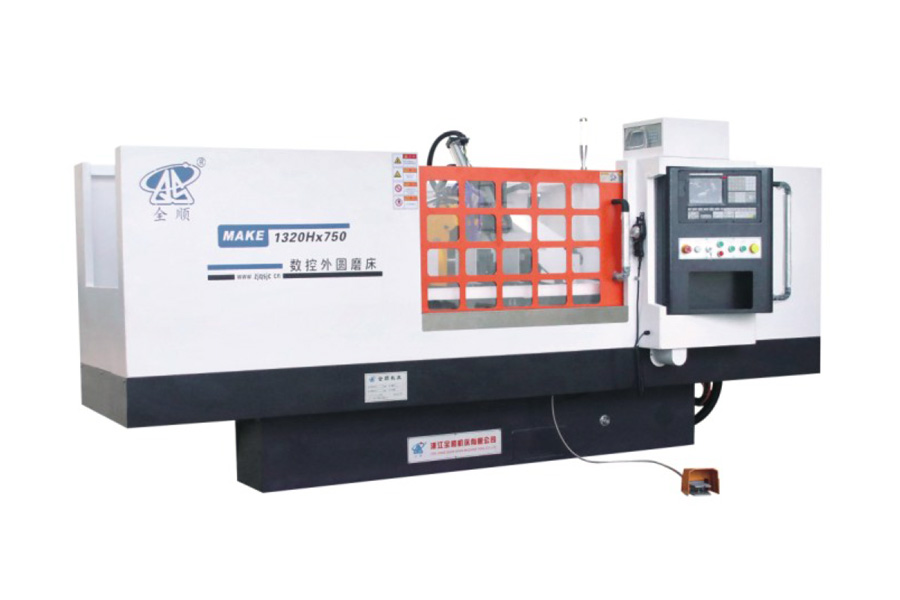

MAK1320H / MAKE1320H: For workpieces of Φ8–Φ200 mm, up to 50 kg, with grinding length of 500 mm or 750 mm. Center height 135 mm, Φ500 mm wheel, 10.825 kW.

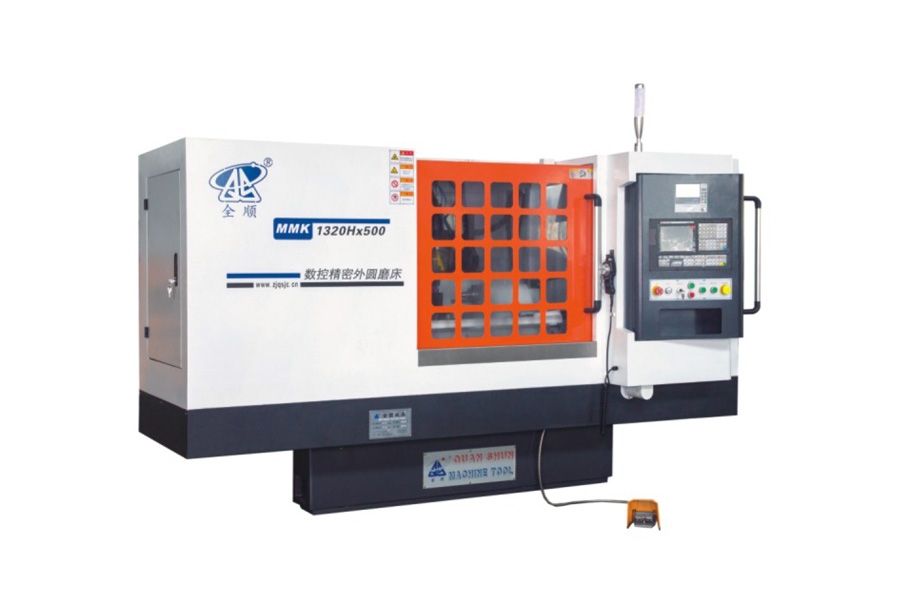

MK1320H / MKE1320H: For workpieces of Φ8–Φ200 mm, up to 50 kg, with grinding length of 500 mm or 800 mm. Center height 135 mm, Φ400 mm wheel, 10.825 kW.
