What is a compound grinding machine?

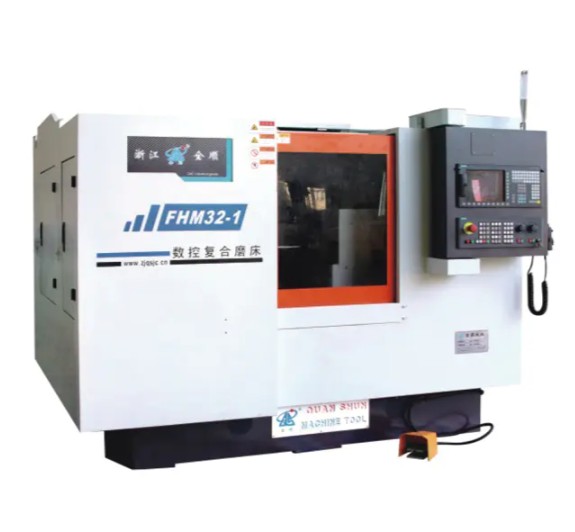

In modern manufacturing, efficiency and precision are key to business success. To meet growing production demands, compound grinding machines have emerged as a vital tool in the field of precision machining. They are CNC machines that integrate multiple grinding functions, enabling them to perform various grinding operations, such as external cylindrical, internal cylindrical, end face, conical, and non-circular surfaces, all on a single machine.

Performance Advantages

The popularity of compound grinding machines stems primarily from their significant performance advantages:

• Improved Processing Efficiency: Traditional machining requires multiple setups and machine tool changes, while compound grinding machines can perform multiple grinding operations in a single setup, significantly shortening production cycles and improving productivity.


• Ensuring Processing Accuracy: By reducing the number of repeated setups, compound grinding machines effectively eliminate positioning errors caused by multiple setups, thereby ensuring workpiece machining accuracy and consistency.


• Saving Space and Costs: A single compound grinding machine can replace multiple traditional grinding machines, saving valuable workshop space and reducing labor costs associated with equipment procurement, maintenance, and operation.


• Highly automated and intelligent: Modern compound grinding machines are typically equipped with advanced CNC systems and automated loading and unloading devices, enabling unmanned or reduced-manpower operation, reducing labor intensity and improving the automation level of production lines.


Applications of compound grinding machines

Due to their powerful functionality and high precision, compound grinding machines play a vital role in a variety of industries, particularly those requiring extremely high machining accuracy:

• Automotive manufacturing: Used for precision machining of key components such as engine crankshafts, camshafts, and transmission gears.


• Aerospace: Used for grinding complex structural components such as aircraft engine blades and turbine discs, ensuring high reliability and performance.


• Mold manufacturing: In the machining of precision molds, compound grinding machines can achieve high-quality grinding of complex curved surfaces, improving mold quality and service life.


• Bearing industry: Used for precision grinding of bearing inner and outer rings, balls, and rollers, ensuring low noise and high rotational accuracy.



Differences from Traditional Grinding Machines

Compared to traditional single-function grinding machines (such as external and internal cylindrical grinders), compound grinding machines differ most significantly in their multifunctional integration. For example, when machining a workpiece requiring both internal and external cylindrical grinding and face grinding, the traditional method involves first grinding the outer diameter on an external cylindrical grinder, then grinding the inner bore on an internal cylindrical grinder, and finally grinding the end face on a face grinder. However, a compound grinding machine can complete all these steps in one go. This "one-stop" solution is the core competitive advantage of combination grinders.

Future Outlook

As the manufacturing industry evolves towards high-end and intelligent manufacturing, the application of combination grinders will become even more widespread. In the future, they will be integrated with more intelligent technologies to achieve higher levels of automation and production optimization, creating greater value for businesses.

Combination grinders are more than just simple machine tools; they are a vital embodiment of modern precision machining technology, providing strong support for the manufacturing industry's pursuit of high efficiency and precision.
