What is a Centerless Grinding Machine?

In the field of modern precision machinery manufacturing, the requirements for dimensional accuracy and surface roughness of parts are becoming increasingly stringent. Achieving these stringent standards requires efficient and reliable precision grinding equipment, among which the centerless grinder is an indispensable key piece of equipment.

Definition and Working Principle of a Centerless Grinding Machine

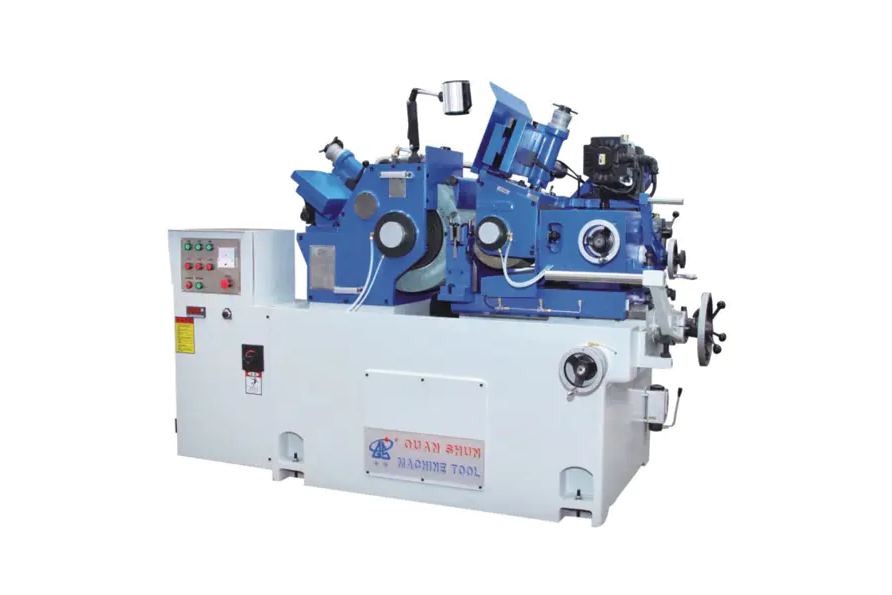

A centerless grinder is a type of grinding machine that can grind workpieces without using centers or chucks to hold them. Its core grinding system mainly consists of three parts: a grinding wheel, a regulating wheel, and a work rest blade.

Its working principle is as follows: the workpiece is placed on the work rest blade between the grinding wheel and the regulating wheel. The regulating wheel presses the workpiece against the grinding wheel at a set speed and angle for cutting and grinding. This unique "three-point support" structure gives centerless grinding the following significant advantages:

• High Efficiency: Suitable for mass production of continuous cylindrical parts.


• High Precision: No alignment required; the machined workpieces have extremely high concentricity and minimal runout error.


• Excellent surface quality: Ensures the roundness and straightness of the workpiece.


Key Characteristics and Applications of Centerless Grinding Machines

With technological advancements, centerless grinding machines are constantly innovating in design and function to meet the needs of various industries.

Core Technical Features

Diverse Machining Shapes: In addition to standard external cylindrical grinding, modern centerless grinding machines can perform centerless plunge grinding, centerless pedestal grinding, and composite grinding. They can even perform internal cylindrical grinding (such as internal centerless grinding machines) with special configurations.

Automation Integration: High-end equipment can integrate automatic loading and unloading systems to achieve fully automated production lines, significantly reducing manual intervention.

High Rigidity Design: For example, the use of high-precision bearings and heavy-duty bed design ensures dimensional stability during high-speed, high-load grinding.

Wide Range of Applications

Centerless grinding machines play an important role in several key industries, including but not limited to:

• Automotive Parts: Precision grinding of key transmission components such as crankshafts, camshafts, and piston rods.


• Hydraulic and Pneumatic Components: Machining of components requiring high sealing and surface finish, such as cylinder rods and pump shafts.


• Bearing Manufacturing: Precision machining of key internal and external components such as rollers and bearing rings.


• Mold Manufacturing: High-standard cylindricity and surface finish treatment for mold ejector pins, guide pillars, etc.



Future Development Trends of Centerless Grinding Machines

Currently, the manufacturing industry is developing towards intelligent and green directions. The future trends of centerless grinders are also following suit:

• CNC: Upgrading to CNC centerless grinders to achieve digital control and online measurement feedback of grinding parameters, further improving grinding quality.


• Energy Saving and Environmental Protection: Adopting more efficient drive systems and cooling filtration technologies to reduce energy consumption and coolant consumption.



With its unique "centerless" clamping advantage and excellent cylindrical part machining capabilities, the centerless grinder has become an irreplaceable "grinding tool" in modern precision machining.
