What are the uses of Cylindrical Grinding Machine?

In modern industrial manufacturing, the high standards of part precision and surface quality make grinding a critical step in the production process. It is a specialized machine tool primarily used for high-precision grinding of workpiece surfaces, including external cylindrical surfaces, conical surfaces, end faces, stepped surfaces, and shaft shoulders.

The core value of Cylindrical Grinding Machine lies in their ability to achieve extremely high dimensional accuracy (typically reaching micrometers) and superb surface finish (even mirror-like). It is primarily used in the following areas:

Precision Shaft Machining

Whether it is the crankshafts and camshafts in engines or the spindles, rotating shafts, and transmission shafts in various mechanical equipment, Cylindrical Grinding Machine are required for finishing to ensure geometric accuracy and dynamic balance.

External Cylindrical Finishing of Sleeves and Rings

For annular parts such as bearing inner and outer rings, sleeves, and bushings that mate with shafts, Cylindrical Grinding Machine ensure that their outer diameters meet stringent tolerances, ensuring tight assembly and precise movement.

Mold and Tool Manufacturing

In the mold and tool manufacturing industry, Cylindrical Grinding Machine are used to reshape and grind the external surfaces of parts such as punches, mandrels, and gauges, ensuring high hardness and reliable precision.

Repair and Maintenance

Cylindrical Grinding Machine can be used to repair the external cylindrical surface of worn mechanical parts, restoring their original dimensions and performance, thereby extending equipment life and reducing maintenance costs.

Operating Principle and Classification of Cylindrical Grinding Machine

Cylindrical Grinding Machine combine the high-speed rotation of the grinding wheel with the low-speed rotation and feed motion of the workpiece to achieve micro-removal of the workpiece material. Common Cylindrical Grinding Machine can be divided into two categories based on the workpiece support method:

Centered Cylindrical Grinding Machine

The workpiece is supported by the centering tool and is suitable for machining slender shafts with center holes. This is the most commonly used type of grinding machine.

Centerless Cylindrical Grinding Machine

The workpiece is supported and driven by a guide wheel, a support plate, and the grinding wheel, eliminating the need for a center hole. They are particularly suitable for high-volume, continuous machining of short shafts or annular parts without center holes, such as needle rollers and piston pins.

Development Trends of External Cylindrical Grinding Machines under Intelligent Manufacturing

With the advancement of Industry 4.0 and intelligent manufacturing, modern external cylindrical grinding machines are no longer simple mechanical devices. They are developing towards high automation, high efficiency, and complex functions:

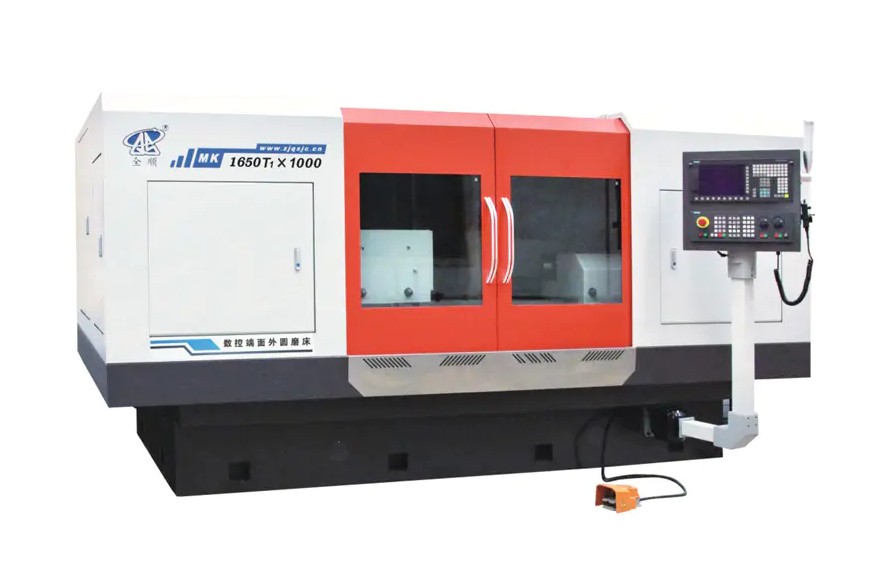

CNC Grinding

Through program control, CNC external cylindrical grinding machines enable fully automated grinding of complex curves and multiple steps, greatly improving processing flexibility and production efficiency.

High-Precision Feed

Utilizing technologies such as linear motors and high-precision lead screws, they achieve submicron feed accuracy.

Online Measurement and Compensation

Integrated measurement systems monitor workpiece dimensions in real time and automatically adjust grinding parameters to ensure consistent final product quality.

External cylindrical grinding machines are used to provide efficient, high-precision finishing of the external surfaces of various shafts, sleeves, rings, and precision tools. They are not only the foundation for achieving high performance in mechanical parts, but also a key piece of equipment for ensuring product reliability and durability. For modern manufacturing industries striving for high quality and efficiency, external cylindrical grinding machines are undoubtedly a vital tool for achieving precision machining goals.
