What are the three types of cylindrical grinding machines?

Cylindrical grinding machines are key pieces of equipment in the machining field used for high-precision grinding of cylindrical workpieces. They use a grinding wheel to finely machine the outer or inner surfaces of the workpiece to achieve extremely high dimensional accuracy and surface finish. What are the three main types of cylindrical grinding machines? They are: external cylindrical grinding machines, internal cylindrical grinding machines, and centerless grinding machines.

1. External Cylindrical Grinding Machine (External Cylindrical Grinder)

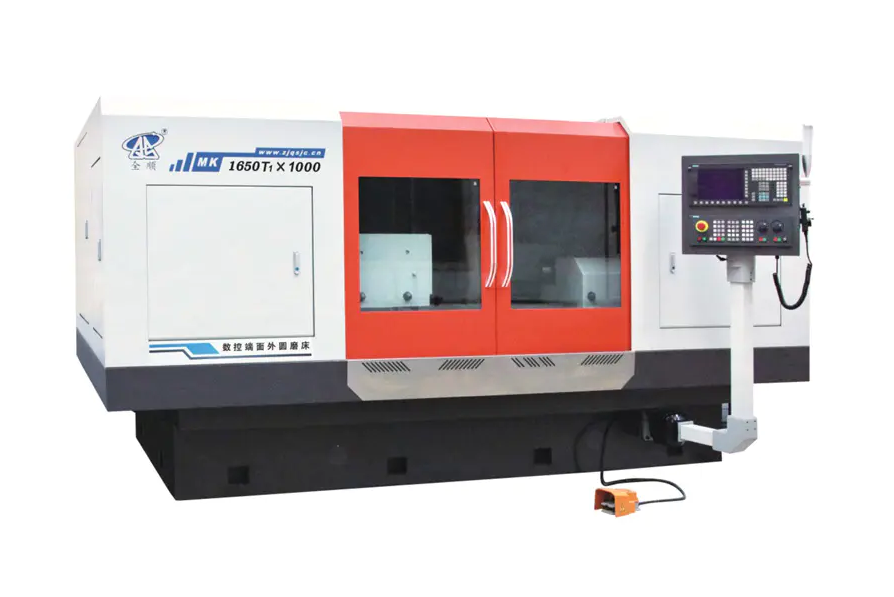

External cylindrical grinding machines are the most widely used type of cylindrical grinding machines, specifically designed for grinding the outer surfaces of cylindrical, conical, or stepped shaft-like workpieces.

Working Principle: The workpiece is usually supported by a headstock and tailstock, or clamped by a chuck. During the grinding process, the workpiece rotates, and the grinding wheel also rotates at high speed, contacting the workpiece surface with a specific feed rate to remove material.

Application Scenarios: Primarily used for grinding the outer diameters of various shaft and sleeve-like parts, such as engine crankshafts, drive shafts, and precision measuring tools.

2. Internal Cylindrical Grinder

As the name suggests, an internal cylindrical grinder is used for grinding the inner surfaces of workpieces, in contrast to an external cylindrical grinder.

Working Principle: Grinding internal holes requires a relatively small-diameter grinding wheel mounted on a high-speed rotating grinding head spindle. The workpiece is typically fixed in a chuck and rotates, while the grinding head performs radial and axial feed.

Applications: Primarily used for machining the inner holes and internal conical surfaces of various sleeves, bearing inner rings, gears, and other parts.

3. Centerless Grinder

A centerless grinder is a unique type of cylindrical grinder that does not require a center or chuck to support the workpiece. Instead, it relies on the interaction of the grinding wheel, guide wheel, and support plate to complete the grinding process.

Working Principle:

• Grinding Wheel: The main body for grinding.
• Guide Wheel: Controls the workpiece's rotational speed and axial feed rate.
• Work Rest Blade: Supports the workpiece.



Advantages: High production efficiency and automation, especially suitable for long, thin shafts and mass production.

How to Choose the Right Cylindrical Grinding Machine?

When selecting a cylindrical grinding machine, companies should comprehensively consider their product characteristics, precision requirements, and production volume needs:

• Product Shape: If grinding the outer diameter of a part is required, an external cylindrical grinding machine should be selected; if machining internal holes, an internal cylindrical grinding machine is needed.


• Production Volume and Support Requirements: For workpieces requiring high-volume production and without center support (such as pins and bearing rollers), centerless grinding machines are the best choice, significantly improving production efficiency.


• Precision Requirements: Modern precision cylindrical grinding machines, whether external, internal, or centerless, offer extremely high machining accuracy, but the specific model and configuration will determine its final performance.



Understanding these three main types of cylindrical grinding machines and their core characteristics will help you make more informed equipment investment decisions in industrial production, ensuring your machining quality and efficiency are at the forefront of the industry.
