What are the Main Faults of Crankshaft Grinding Machines?

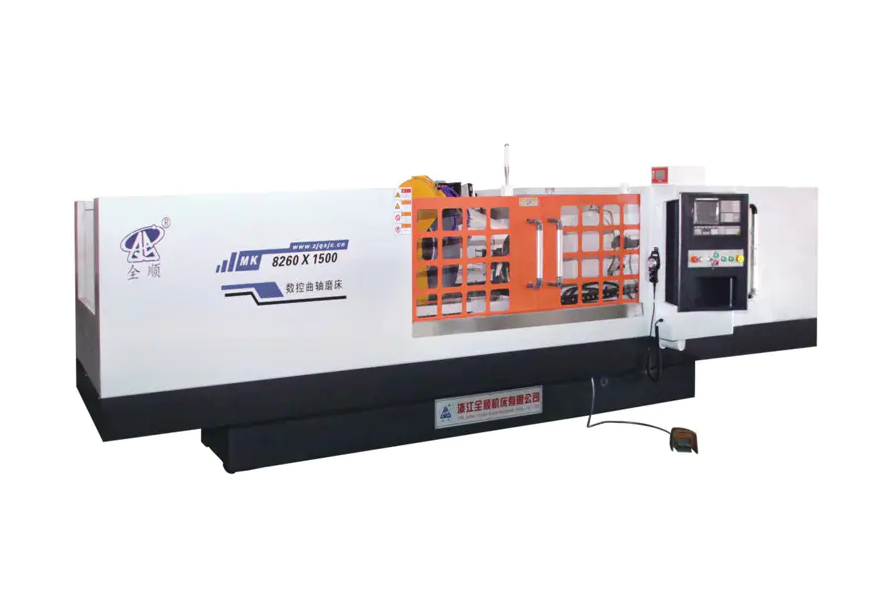

As a key piece of equipment for the precision machining of crankshafts—core components in industries such as automobiles, shipbuilding, and construction machinery—the operational stability and precision of crankshaft grinding machines directly affect the quality of the final product. However, any high-precision equipment is prone to failure during long-term operation. Understanding these main fault types is crucial for timely maintenance and minimizing downtime.

Five Common Faults of Crankshaft Grinding Machines and Their Causes

Faults in crankshaft grinding machines can generally be categorized into mechanical faults, electrical faults, hydraulic system faults, and precision faults. The following are some of the most common and impactful fault types:

1. Grinding Accuracy and Surface Quality Issues

This is the most critical and common fault in crankshaft grinding machines. It manifests as:

• Excessive roundness error (commonly known as "grinding deviation"): This may be caused by improper grinding wheel dressing, excessive spindle bearing clearance, or unreasonable grinding parameter settings (such as feed rate and grinding wheel linear speed).


• Substandard surface roughness: Usually related to the selection of grinding wheel grit size, insufficient grinding fluid supply, grinding wheel wear, or poor dressing quality.


• Burns or cracks: Often caused by excessive grinding force, high feed rate, wheel blockage, or insufficient grinding fluid cooling.



2. Machine Tool Vibration and Abnormal Noise

Vibration is a major factor seriously affecting grinding accuracy. Abnormal vibration and noise during crankshaft grinding machine operation may be caused by the following:

• Mechanical Parts: Spindle component dynamic imbalance failure, damaged or loose spindle bearings, insecure fixture or workpiece installation, loose foundation bolts.


• Grinding Wheel System: Grinding wheel imbalance (not performed or not properly static/dynamic balancing), loose grinding wheel chuck, or incomplete grinding wheel dressing.


• Transmission System: Improper belt tension, damaged coupling, or worn motor bearings.


3. CNC System Failures

Modern crankshaft grinding machines mostly use CNC systems for control. Failures include:

• Servo System Alarms: Such as position errors, speed errors, driver overload, encoder malfunction, etc. This can cause bearings to malfunction or become inaccurately positioned.


• I/O (Input/Output) Failure: Manifests as the inability to execute some functions (such as automatic loading/unloading, hydraulic clamping, and cooling pump), usually due to damage to limit switches, relays, or I/O modules.


• Program Errors or System Crashes: May be related to memory, power supply, or external interference.



4. Hydraulic System Failures

The hydraulic system in a crankshaft grinder is mainly responsible for the feed of the grinding wheel head, the reciprocating motion of the worktable, and the clamping of the workpiece. Common problems include:

• Insufficient or Unstable Pressure: Caused by pump failure, improper adjustment of the relief valve, oil leakage, or oil contamination. This affects the clamping force or the smoothness of the feed.


• Slow or Stuck Movements: Caused by blocked or worn hydraulic valve cores, or damaged cylinder seals leading to internal leakage.


• Overheating Oil: Caused by decreased cooler efficiency or an unreasonable hydraulic system design. High temperatures reduce oil viscosity, affecting system performance and seal life.



5. Gear Shifting or Tool Setting Mechanism Failure

For crankshaft grinding machines producing a variety of products in small batches, the gear shifting mechanism and automatic tool setting system may experience the following issues:

• Inaccurate or Inability to Shift Gears: This could be due to sensor positioning problems, hydraulic actuator malfunctions, or wear on mechanical transmission components.


• Automatic Tool Setting Failure: This could be due to a dirty or damaged probe, or poor contact in the signal transmission cable, resulting in inaccurate workpiece position measurement.



Summary and Preventive Maintenance Recommendations

To ensure the continuous and efficient operation of the crankshaft grinding machine to the greatest extent possible, it is recommended that companies implement a strict preventive maintenance plan:

• Regular Inspection: Check the lubrication and wear of all bearings, especially the spindle bearing.
• Dynamic Balancing: Strictly perform static and dynamic balancing of the grinding wheels to eliminate vibration sources.
• Hydraulic Oil Management: Regularly change the hydraulic oil and filter elements to ensure oil cleanliness and monitor oil temperature.
• Electrical System Troubleshooting: Regularly clean dust from the control cabinet and check the tightness of cables and connectors.
• Standardized Operation: Operators must be proficient in the operating procedures and troubleshooting processes of the crankshaft grinding machine.



By gaining a thorough understanding of these common faults and implementing preventative maintenance measures, the availability and grinding quality of crankshaft grinding machines can be significantly improved, ensuring the production efficiency and precision of key components.
