How to evaluate the precision and repeatability of a CNC crankshaft grinder?

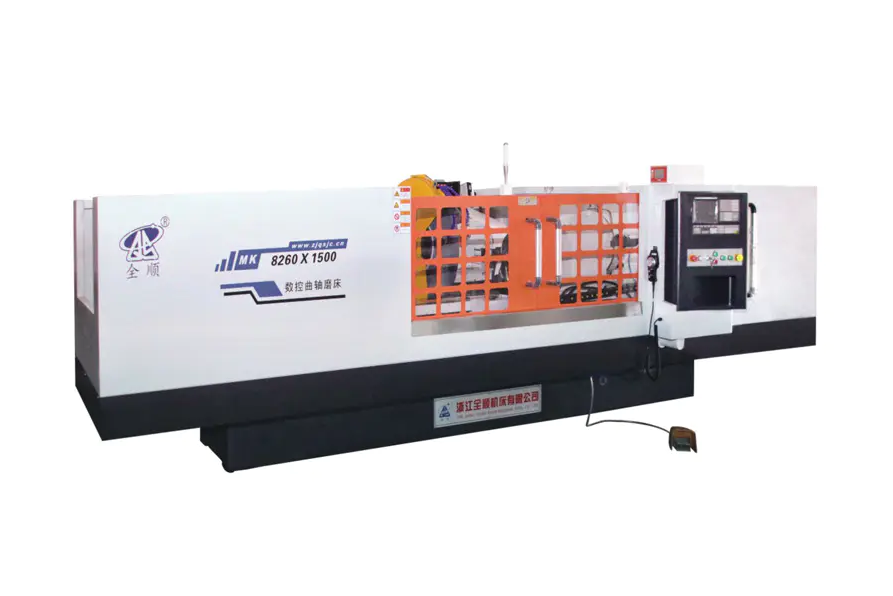

Evaluating the precision and repeatability of a CNC crankshaft grinder requires systematic measurement of dimensional accuracy, geometric tolerances, and process consistency across multiple machining cycles. The core approach combines on-machine probing, CMM (Coordinate Measuring Machine) verification, and statistical process control (SPC) analysis. A well-calibrated CNC crankshaft grinder should achieve roundness within ±0.001 mm, diameter tolerance within ±0.002 mm, and a Cpk value of 1.33 or higher to be considered production-capable.

The evaluation process is not a one-time check — it is a structured protocol that spans machine qualification, workpiece inspection, and long-term capability analysis.

Key Precision Metrics for CNC Crankshaft Grinding

Before running any test, it is essential to define which parameters constitute "precision" for a crankshaft grinder. These metrics directly impact engine performance and component lifespan.

• Journal Diameter Tolerance: Typically ±0.002–0.005 mm for high-performance crankshafts.
• Roundness (Circularity): Should be within 0.001–0.003 mm for main and pin journals.
• Cylindricity: Measures taper and barrel deviation along the journal length, typically ≤0.002 mm.
• Surface Roughness (Ra): Target Ra ≤ 0.4 µm for bearing contact surfaces.
• Pin Journal Throw Accuracy: Deviation of the pin center relative to the main axis, usually ≤0.005 mm.
• Angular Positioning of Pin Journals: Critical for engine timing; angular error should not exceed ±0.05°.

These metrics form the measurement blueprint. Any evaluation protocol must address each one with the appropriate instrument and method.

Machine Qualification: The Starting Point

Before workpiece grinding begins, the machine itself must be verified through geometric and dynamic qualification tests. These tests establish whether the machine's mechanical structure can support the claimed tolerances.

Geometric Accuracy Tests

Use a laser interferometer or precision ball bar to check:

• Straightness of the grinding wheel head traverse axis (X-axis): target ≤ 0.002 mm/300 mm
• Parallelism between the wheel spindle axis and the workhead/tailstock axis: ≤ 0.003 mm/500 mm
• Runout of the grinding wheel spindle: ≤ 0.001 mm
• Workhead spindle runout: ≤ 0.002 mm

Thermal Stability Assessment

Thermal drift is a major source of dimensional error in CNC grinding. Run the machine at operating temperature for at least 60–90 minutes before taking precision measurements. Measure the thermal displacement at the grinding spindle using a capacitive sensor at 15-minute intervals. A stable machine should exhibit less than 0.003 mm of thermal drift after warm-up.

On-Machine Gauging: Real-Time Precision Control

Modern CNC crankshaft grinders integrate in-process gauging systems that continuously measure the workpiece diameter during grinding. This active feedback loop is the most direct method for controlling dimensional precision.

To evaluate the effectiveness of the on-machine gauge:

1. Grind a test journal to a nominal diameter and record the gauge reading at spark-out.
2. Remove the workpiece and measure the same journal with a calibrated air gauge or CMM.
3. Calculate the difference between the on-machine reading and the offline measurement.
4. Repeat this across 10 consecutive parts to establish the gauge correlation error.

A well-functioning in-process gauge should correlate with CMM results within ±0.001 mm. Deviations beyond this indicate gauge wear, mounting issues, or coolant contamination.

Post-Process Inspection with CMM and Roundness Tester

Off-machine measurement provides the most objective data for precision evaluation. Two instruments are indispensable:

Coordinate Measuring Machine (CMM)

CMM inspection captures diameter, cylindricity, and throw accuracy. For crankshaft evaluation, a scanning probe is preferable to a touch-trigger probe because it collects hundreds of points per journal, providing statistically robust data. Measure at a minimum of 3 cross-sections per journal (both ends and center) using at least 36 points per cross-section.

Roundness/Form Tester

A dedicated roundness tester (Taylor Hobson type or equivalent) provides far higher resolution for circularity and surface waviness than a CMM. It uses a precision spindle with angular uncertainty below 0.01 arc-seconds. This instrument is essential for evaluating:

• Roundness error per ISO 12181
• Lobing (odd-number harmonic errors caused by centerless fixturing)
• Waviness (mid-spatial frequency errors linked to wheel chatter)

Repeatability Testing: The Gauge R&R and SPC Approach

Repeatability is not just about one good part — it is about consistent output across a production run. Two structured methods define this capability:

Gauge Repeatability and Reproducibility (Gauge R&R)

This study separates measurement system variation from actual part variation. Procedure:

• Select 10 crankshaft journals spanning the expected diameter range.
• Have 2–3 operators each measure all 10 parts, 3 times each, in random order.
• Calculate %GRR = (Gauge R&R variation / Total variation) × 100.

Acceptance criteria: %GRR ≤ 10% is excellent; 10–30% is marginal; above 30% requires corrective action before production data is trusted.

Statistical Process Control (SPC) and Process Capability

Grind a minimum of 25–30 consecutive crankshafts under controlled conditions and record the main journal diameter for each part. Plot the data on an X-bar and R control chart, then calculate:

• Cp (Process Capability): Measures spread relative to tolerance. Target Cp ≥ 1.67.
• Cpk (Process Capability Index): Accounts for process centering. Target Cpk ≥ 1.33 for standard production; ≥ 1.67 for critical journals.
• Standard Deviation (σ): Should be below 1/6 of the bilateral tolerance.

Evaluation Summary: Metrics and Acceptance Thresholds

Common Sources of Precision Loss and How to Identify Them

When evaluation results fall outside the thresholds above, the root cause must be traced systematically. The most common sources of degraded precision in CNC crankshaft grinders include:

• Wheel imbalance or dressing errors: Causes chatter marks visible in roundness profiles as high-frequency lobing. Solution: rebalance wheel and re-dress with finer lead.
• Workhead or tailstock bearing wear: Shows up as increased runout on the rotating workpiece. Detectable with a precision dial indicator at the spindle nose.
• Thermal growth during long production runs: Identified by trending CMM data over time — if diameter gradually drifts in one direction, thermal compensation or a warm-up cycle is needed.
• Fixture or clamping inconsistency: Results in part-to-part variation in throw accuracy. Check with consistent clamping force using a torque wrench and repeat measurement.
• CNC controller interpolation error: Manifests as angular position errors in pin journals. Verify by checking the C-axis encoder resolution and backlash compensation settings.

Establishing a Periodic Re-evaluation Schedule

A one-time qualification is not sufficient for long-term production assurance. Precision evaluation should follow a tiered schedule:

• Every production shift: Verify in-process gauge correlation using a reference master ring gauge. Check first and last part of the run with CMM.
• Weekly: Run a 10-part SPC sample and recalculate Cpk. Inspect wheel condition and dressing tool wear.
• Monthly: Conduct a full geometric accuracy audit using laser interferometer and ball bar testing.
• Annually or after major maintenance: Full machine re-qualification including thermal stability, spindle runout, and Gauge R&R study.

Trend analysis from these periodic checks allows proactive maintenance before precision degrades below specification — reducing scrap rates and unplanned downtime significantly.
