中文简体Grinding with a grinding machine is the process of using an abrasive wheel rotating at high speed to remove material from a workpiece, refine its surface finish, or achieve precise dimensional tolerances. The key to successful grinding lies in matching the correct wheel specification to your material, setting appropriate speed and feed rates, and maintaining consistent contact pressure throughout the operation. Whether you are working with hardened steel, cast iron, aluminum, or ceramics, the fundamental sequence remains: inspect and dress the wheel, secure the workpiece, set parameters, and execute controlled passes.
Modern grinding machines can achieve surface finishes as fine as Ra 0.1 µm and dimensional tolerances within ±0.001 mm, making them indispensable in precision manufacturing environments such as aerospace, automotive, and toolmaking industries.
Content
- 1 Types of Grinding Machines and Their Primary Applications
- 2 How to Select the Right Grinding Wheel
- 3 Step-by-Step: How to Grind Using a Grinding Machine
- 4 Common Grinding Defects and How to Fix Them
- 5 Safety Practices You Must Follow Every Time
- 6 Coolant and Lubrication: Why They Matter More Than You Think
- 7 Wheel Balancing and Maintenance for Consistent Results

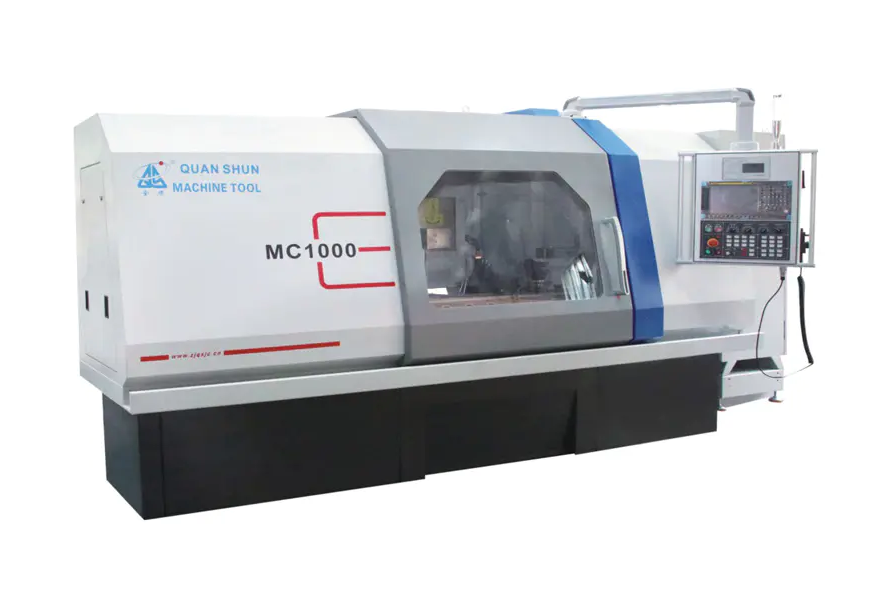

Types of Grinding Machines and Their Primary Applications
Before operating any grinding machine, you must understand which type you are working with, as each has distinct operational procedures.
| Machine Type | Best For | Typical Tolerance | Wheel Orientation |
|---|---|---|---|
| Surface Grinder | Flat surfaces, plates, blocks | ±0.002 mm | Horizontal spindle |
| Cylindrical Grinder | Shafts, rods, pins | ±0.001 mm | Horizontal, rotating workpiece |
| Centerless Grinder | High-volume round stock | ±0.0005 mm | No centers required |
| Internal Grinder | Bores, holes, internal features | ±0.002 mm | Small-diameter spindle |
| Tool & Cutter Grinder | Drills, end mills, inserts | ±0.003 mm | Multi-axis adjustable |
How to Select the Right Grinding Wheel
Wheel selection is one of the most critical decisions in grinding. Using the wrong wheel causes poor surface finish, excessive wheel wear, workpiece burning, or even wheel breakage. The wheel specification printed on its blotter describes five key properties:
- Abrasive type: Aluminum oxide (A) for steel and ferrous metals; silicon carbide (C) for cast iron, non-ferrous metals, and ceramics; CBN for hardened tool steels; diamond for carbide and glass.
- Grain size: Coarse grains (16–24) remove material quickly; medium grains (36–60) balance stock removal and finish; fine grains (80–220) deliver superior surface quality.
- Grade (hardness): Soft grades (A–H) suit hard materials; hard grades (P–Z) suit soft materials — a counterintuitive but essential rule.
- Structure: Open structures (high porosity) are better for soft or ductile materials; dense structures suit brittle, hard materials.
- Bond type: Vitrified (V) bonds are standard for precision grinding; resinoid (B) bonds absorb shock well for roughing operations.
As a practical example, grinding hardened tool steel (60+ HRC) typically calls for a CBN wheel with a grain size of 46–80 and a vitrified bond, while grinding soft carbon steel works well with an A46-K-V specification wheel.
Step-by-Step: How to Grind Using a Grinding Machine
Follow this sequence every time you perform a grinding operation to ensure safety, accuracy, and consistent results.
Step 1 — Inspect and Mount the Grinding Wheel
Perform a ring test before mounting any wheel: suspend it on a pin or finger and tap it lightly with a wooden mallet. A sound wheel produces a clear, resonant ring; a cracked wheel produces a dull thud and must be discarded immediately. When mounting, ensure the blotters (paper washers) are in place on both sides, tighten the flange nut firmly but not excessively — overtightening can crack vitrified wheels.
Step 2 — Dress the Wheel
Wheel dressing restores the wheel's geometry and opens fresh abrasive grains. Use a single-point diamond dresser or rotary diamond roll. For surface grinding, traverse the dresser across the full wheel width at a feed rate of approximately 0.05–0.1 mm per pass, with a depth of 0.01–0.03 mm. Never skip this step on a new wheel or after prolonged storage, as wheels can become loaded or glazed.
Step 3 — Secure the Workpiece
On a surface grinder, use a magnetic chuck for ferrous parts — verify the holding force is sufficient by attempting to slide the part before starting. For non-magnetic materials, use clamping fixtures or vacuum chucks. On a cylindrical grinder, mount the workpiece between centers or in a chuck, checking runout with a dial indicator. Runout should not exceed 0.005 mm for precision work before grinding begins.
Step 4 — Set Grinding Parameters
Key parameters to configure include:
- Wheel speed: Most conventional wheels operate at a surface speed of 25–35 m/s. Always verify the wheel's maximum rated speed and never exceed it.
- Table traverse speed: Typically 5–20 m/min for surface grinding; slower speeds improve finish.
- Depth of cut (infeed): Roughing passes: 0.02–0.05 mm; finishing passes: 0.002–0.005 mm.
- Coolant flow: Apply coolant generously and consistently. Intermittent coolant application causes thermal shock, which can crack both the workpiece and the wheel.
Step 5 — Touch Off and Begin Grinding
Bring the wheel slowly toward the workpiece until you hear or see the first light spark contact — this is your "zero" reference point. Record this position on the machine's dial or digital readout. Then retract slightly, start the coolant flow, and begin roughing passes. Take multiple passes at the roughing depth until you are within 0.02–0.05 mm of the final target dimension, then switch to finishing parameters for the remaining stock.
Step 6 — Measure and Verify
Stop the machine and allow the workpiece to cool to room temperature before taking final measurements, since thermal expansion during grinding can cause errors of up to 0.01 mm on steel components. Use a micrometer, bore gauge, or surface roughness tester depending on the feature being checked.
Common Grinding Defects and How to Fix Them
Even experienced operators encounter problems. Recognizing defect signatures quickly saves time and material.
| Defect | Likely Cause | Corrective Action |
|---|---|---|
| Burn marks / blue discoloration | Glazed wheel, insufficient coolant, excessive depth of cut | Dress wheel, increase coolant flow, reduce infeed |
| Chatter marks / waviness | Wheel imbalance, workpiece vibration, worn spindle bearings | Balance wheel, check workpiece fixturing, inspect spindle |
| Poor surface finish | Coarse grain wheel, traverse speed too high | Switch to finer grain, reduce traverse speed |
| Taper on cylindrical part | Misaligned tailstock or table | Re-align tailstock, check table parallelism |
| Workpiece cracking | Thermal shock from intermittent coolant or excessive heat | Apply coolant continuously, reduce depth of cut |
Safety Practices You Must Follow Every Time
Grinding machines are among the most hazardous equipment in a machine shop. A grinding wheel rotating at 35 m/s carries enormous kinetic energy — a catastrophic wheel failure can project fragments at speeds exceeding 100 m/s. The following precautions are non-negotiable:
- Always wear safety glasses rated for grinding operations (ANSI Z87.1 or equivalent) in addition to the machine's wheel guard.
- Stand to the side of the wheel — not directly in front — during the initial spin-up period of at least 60 seconds at full speed before touching the workpiece.
- Never exceed the maximum operating speed (RPM) marked on the wheel label. Verify machine spindle speed matches the wheel's rating before mounting.
- Keep wheel guards in place and properly adjusted — the gap between the wheel and the work-rest should never exceed 3 mm (1/8 inch).
- Use respiratory protection when grinding materials that produce hazardous dust, including cast iron, stainless steel, or any materials with coatings.
- Never use a grinding wheel that is chipped, cracked, or has been dropped — replace it immediately regardless of how new it is.
Coolant and Lubrication: Why They Matter More Than You Think
Coolant in grinding serves three functions simultaneously: it cools the cutting zone, lubricates the wheel-workpiece interface, and flushes away swarf. Without adequate coolant, workpiece temperatures at the grinding zone can exceed 800°C in less than a second, causing surface hardness loss (grinding burn), residual tensile stresses, and micro-cracking.
Water-soluble coolants (mixed at 3–8% concentration) are the most common choice for general surface and cylindrical grinding. Straight grinding oils offer superior lubrication for thread grinding or gear grinding where surface finish is paramount. For CBN and diamond wheels, high-pressure coolant delivery at 40–80 bar is often used to penetrate the wheel-workpiece contact zone effectively.
Position the coolant nozzle so the stream contacts the wheel just before the grinding zone — not behind it — to ensure the coolant enters where heat is generated.
Wheel Balancing and Maintenance for Consistent Results
An unbalanced wheel is one of the leading causes of chatter, poor finish, and premature spindle bearing wear. All wheels above 150 mm in diameter should be statically balanced before mounting, and dynamically balanced where the machine supports it. Use a balancing stand with precision arbor and adjustable balance weights built into the wheel flange to correct any imbalance detected.
After every dressing operation, particularly aggressive dressing, re-check the balance. Dress the wheel with consistent, light passes rather than trying to remove large amounts in a single pass to preserve balance and extend wheel life. A well-maintained wheel can hold its form for hundreds of grinding cycles before requiring re-dressing.
