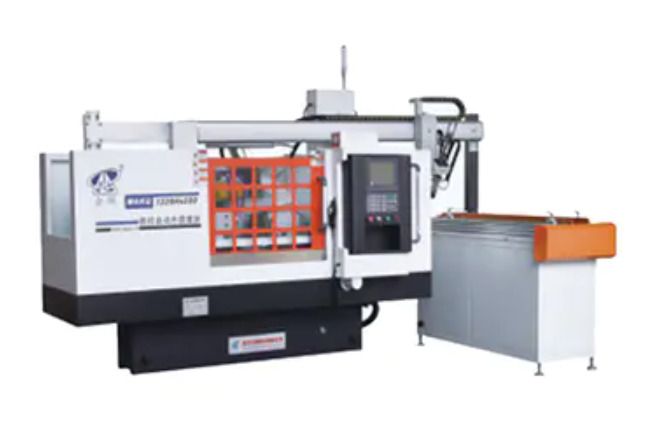

中文简体A cylindrical grinding machine is one of the most precise machining tools available in modern manufacturing. Under optimal conditions, a high-quality cylindrical grinder can achieve dimensional tolerances as tight as ±0.001 mm (1 micron) and surface roughness values (Ra) as low as 0.1–0.4 μm. CNC cylindrical grinders used in precision industries such as aerospace, medical devices, and automotive can routinely hold roundness errors below 0.2 μm and cylindricity within 1–2 μm over short workpiece lengths.
However, actual accuracy in production depends on machine type, setup conditions, workpiece material, operator skill, and maintenance practices. Understanding each of these factors helps manufacturers set realistic expectations and achieve the best possible results.
Content
- 1 Typical Accuracy Ranges by Machine Class
- 2 Key Factors That Determine Grinding Accuracy
- 3 External vs. Internal Cylindrical Grinding Accuracy
- 4 How Workpiece Material Affects Achievable Accuracy
- 5 In-Process Gauging and Its Role in Maintaining Accuracy
- 6 Practical Examples of Cylindrical Grinding Accuracy in Industry
- 7 Common Causes of Reduced Accuracy and How to Address Them
- 8 Summary: What Accuracy Level Can You Expect?
Typical Accuracy Ranges by Machine Class
Not all cylindrical grinders are built to the same standard. Machine classes range from general-purpose production grinders to ultra-precision laboratory-grade systems. The table below summarizes typical achievable accuracies across different machine grades:
| Machine Class | Dimensional Tolerance | Surface Roughness (Ra) | Roundness Error |
|---|---|---|---|
| General-Purpose Production | ±0.005–0.010 mm | 0.4–1.6 μm | 1–5 μm |
| CNC Precision Grinder | ±0.002–0.005 mm | 0.2–0.4 μm | 0.5–2 μm |
| High-Precision / Ultra-Precision | ±0.0005–0.001 mm | 0.05–0.1 μm | <0.2 μm |
Ultra-precision machines, often used in the production of bearing races, fuel injection components, and optical lens mounts, can exceed even these figures under controlled environmental conditions.
Key Factors That Determine Grinding Accuracy
The final accuracy of a cylindrical grinding operation is the result of multiple interacting variables. Even a high-specification machine will underperform if any of these factors is neglected.
Machine Rigidity and Spindle Runout
Structural rigidity is the foundation of grinding accuracy. Any deflection in the machine bed, headstock, or tailstock under cutting forces translates directly into dimensional error. High-precision machines specify spindle runout values of 0.1–0.3 μm, while standard production machines may allow up to 1–2 μm. Hydrostatic or aerostatic spindle bearings are commonly used in ultra-precision grinders to virtually eliminate runout.
Grinding Wheel Selection and Dressing
The condition of the grinding wheel has a direct impact on both surface finish and dimensional repeatability. A poorly dressed wheel produces chatter marks and inconsistent material removal. Regular and precise wheel dressing with a diamond dresser ensures the wheel cuts with a defined geometry. For finishing passes, a finer-grit wheel (e.g., 80–120 grit for roughing versus 220–400 grit for finishing) and a sharper dress angle dramatically improve surface Ra values.
Workholding and Alignment
Misalignment between centers, worn center holes, or an incorrectly set tailstock pressure introduces taper and roundness errors. Center alignment should be verified to within 0.002 mm or better before any precision grinding operation. Steady rests are used to support long, slender workpieces and prevent deflection-induced dimensional variation.
Thermal Stability
Thermal expansion is one of the most subtle yet significant sources of error in cylindrical grinding. A temperature change of just 1°C in a steel workpiece of 300 mm length causes approximately 3.6 μm of dimensional change — enough to exceed tolerance on precision parts. High-end grinding facilities maintain ambient temperature within ±0.5°C and use through-coolant systems to stabilize the workpiece and wheel temperature during the operation.
Coolant Application
Adequate coolant delivery reduces heat generation at the grinding zone, controls thermal expansion, and flushes swarf away from the contact area. Insufficient coolant causes thermal damage (burn marks), dimensional drift, and degraded surface integrity. High-pressure coolant systems (40–80 bar) are used in many precision applications to ensure complete penetration into the wheel-workpiece interface.
External vs. Internal Cylindrical Grinding Accuracy
Accuracy levels differ between external (OD) and internal (ID) cylindrical grinding due to differences in wheel-to-bore contact geometry and the stiffness of the grinding spindle extension.
- External cylindrical grinding generally achieves tighter tolerances because the grinding wheel can be larger and the contact arc is more controllable. Tolerances of IT5 or IT6 (ISO standard) are routinely achieved, corresponding to approximately 4–11 μm for a 50 mm diameter shaft.
- Internal cylindrical grinding is inherently less rigid due to the quill (spindle extension) entering the bore. This limits achievable accuracy, particularly for small or deep bores. Typical tolerance ranges are IT6–IT7 for standard operations, though precision machines can reach IT5 for bores above 20 mm in diameter.
For bore diameters below 5 mm, maintaining consistent accuracy becomes significantly more challenging, and specialized high-speed internal grinding spindles running at 60,000–120,000 RPM are required.
How Workpiece Material Affects Achievable Accuracy
Material properties influence how a workpiece responds to grinding forces and heat, which in turn affects dimensional accuracy and surface quality.
- Hardened steel (58–65 HRC): Ideal for cylindrical grinding. Hard, stable, and resistant to elastic deflection. Achieves the best tolerances with the finest surface finish.
- Soft steel or annealed materials: Prone to smearing and loading the grinding wheel. Requires more frequent dressing and often yields inferior surface finish compared to hardened counterparts.
- Ceramics and carbide: Very hard and brittle; require diamond or CBN wheels and special parameters, but can achieve extraordinary surface finishes (Ra < 0.05 μm) on precision components.
- Aluminum and non-ferrous metals: Soft and thermally sensitive; tend to load aluminum oxide wheels quickly. Achieving fine tolerances requires careful wheel selection (silicon carbide or resin-bonded CBN) and conservative feed rates.
In-Process Gauging and Its Role in Maintaining Accuracy
Modern CNC cylindrical grinders are frequently equipped with in-process gauging systems that measure the workpiece diameter in real time during the grinding cycle. These systems use air gauging or touch-probe technology and feed corrections directly to the machine controller.
The benefit of in-process gauging is the elimination of dimensional drift caused by wheel wear, thermal expansion, or vibration. In-process gauging systems can maintain diameter tolerances within ±0.001 mm across an entire production batch, significantly improving process capability (Cpk) compared to periodic post-process measurement. For high-volume bearing production, this technology is virtually indispensable.
Practical Examples of Cylindrical Grinding Accuracy in Industry
Real-world applications illustrate what accuracy levels are practically achievable and expected in different sectors:
- Automotive camshafts and crankshafts: Journal diameters are typically ground to a tolerance of ±0.005 mm with a surface finish of Ra 0.4–0.8 μm on production lines running at high throughput.
- Precision rolling bearings: Inner and outer race diameters are ground to IT4–IT5 tolerances (2–5 μm for a 50 mm diameter), with roundness errors below 0.5 μm and Ra values of 0.1–0.2 μm.
- Hydraulic valve spools: Require cylindricity of 1–3 μm and diametral tolerances of ±0.002–0.003 mm to ensure proper sealing without excessive leakage.
- Medical implants (bone screws, hip stems): Ground to surface finishes as fine as Ra 0.05–0.1 μm and dimensional tolerances within ±0.002 mm to ensure biocompatibility and precise fit.
Common Causes of Reduced Accuracy and How to Address Them
Even well-specified machines can produce out-of-tolerance parts when certain conditions are not properly managed. Below are the most common accuracy problems and their typical remedies:
| Problem | Likely Cause | Recommended Action |
|---|---|---|
| Taper on OD | Centers misaligned or table not parallel | Re-align centers; check table swivel |
| Chatter marks on surface | Wheel imbalance, worn bearings, or glazed wheel | Balance and dress wheel; inspect spindle bearings |
| Dimensional drift during batch | Thermal expansion or wheel wear | Use in-process gauging; improve coolant delivery |
| Out-of-round workpiece | Worn center holes or excessive tailstock pressure | Regrind centers; adjust tailstock clamping force |
| Poor surface finish | Incorrect wheel spec or feed rate too high | Select finer grit wheel; reduce infeed on finish pass |
Summary: What Accuracy Level Can You Expect?
To summarize, the accuracy achievable with a cylindrical grinding machine spans a wide range depending on equipment class and process control:
- General production grinding delivers tolerances of ±0.005–0.010 mm and Ra of 0.4–1.6 μm — suitable for most commercial mechanical components.
- CNC precision grinding achieves ±0.002–0.005 mm with Ra 0.2–0.4 μm — the standard for automotive, tooling, and mid-tier precision applications.
- High-precision and ultra-precision cylindrical grinding reaches ±0.001 mm or better with Ra below 0.1 μm — essential for bearings, aerospace, and medical components.
Ultimately, achieving the highest accuracy is not just about machine capability — it requires a disciplined process encompassing correct wheel selection, consistent dressing, thermal management, precise workholding, and, ideally, in-process dimensional feedback. When all these elements are properly controlled, cylindrical grinding remains one of the most capable and repeatable machining processes available.
