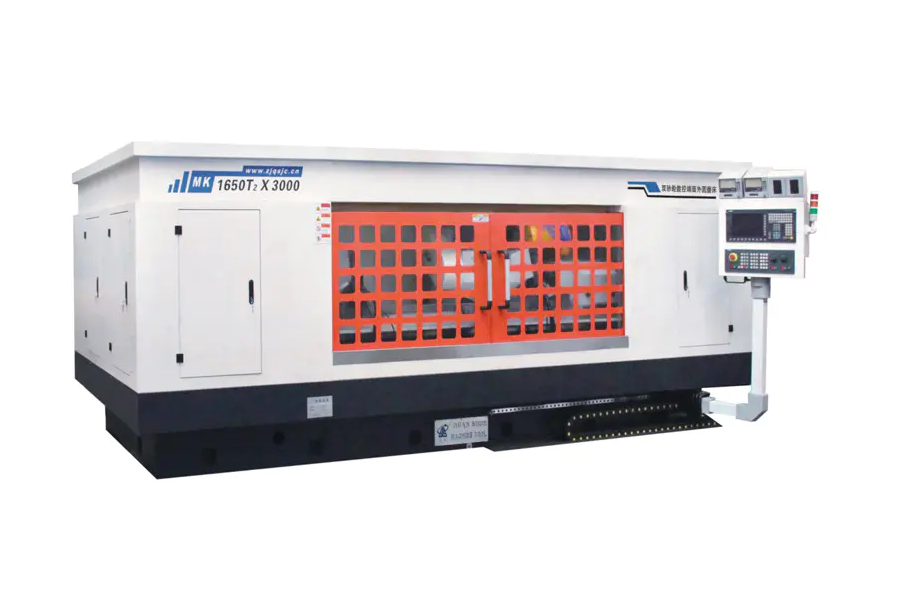

A CNC cylindrical grinding machine can achieve dimensional tolerances as tight as ±0.001 mm (1 micron) and surface roughness values of Ra 0.1 µm or better under optimal conditions. These figures are not theoretical limits — they represent real-world performance delivered by modern CNC grinding systems used in aerospace, automotive, and precision tooling applications. However, actual accuracy depends on several interacting factors: machine rigidity, thermal stability, wheel selection, workpiece material, and process parameters.
Typical Accuracy Specifications for CNC Cylindrical Grinders
Most production-grade CNC cylindrical grinding machines fall within the following performance ranges. These figures reflect industry-standard specifications across both OD (external) and ID (internal) grinding configurations.
| Parameter | Standard Grade | Precision Grade | Ultra-Precision Grade |
|---|---|---|---|
| Dimensional Tolerance | ±0.005 mm | ±0.002 mm | ±0.001 mm or better |
| Surface Roughness (Ra) | 0.4–0.8 µm | 0.2–0.4 µm | 0.05–0.1 µm |
| Roundness (Cylindricity) | 0.003–0.005 mm | 0.001–0.002 mm | <0.001 mm |
| Repeatability | ±0.003 mm | ±0.001 mm | ±0.0005 mm |
In practice, most workshops operate in the precision grade range, balancing throughput with dimensional control. Ultra-precision results require dedicated environmental controls and are typically reserved for bearing races, fuel injection components, and high-precision gauging equipment.
Key Factors That Determine Grinding Accuracy
Achieving the tight tolerances CNC cylindrical grinding machines are capable of is not automatic. Accuracy is the result of multiple interacting factors, each of which must be controlled.
Machine Rigidity and Structural Integrity
The machine's base, column, and spindle system must resist deflection under grinding forces. Machines built on Meehanite cast iron or polymer concrete bases exhibit significantly lower vibration transmission than those using welded steel frames. Spindle runout below 0.0002 mm (0.2 µm) is a baseline requirement for precision-grade machines. Any structural flex directly translates into roundness error on the finished part.
Thermal Stability
Thermal expansion is one of the most common causes of dimensional drift. A 1°C rise in spindle temperature can cause linear expansion of approximately 11.7 µm per meter of steel. CNC cylindrical grinders used in precision environments often incorporate:
- Liquid-cooled spindle housings
- Temperature-controlled coolant systems (±0.5°C or better)
- Thermal compensation algorithms in the CNC controller
- Warm-up cycles of 20–60 minutes before precision runs
Operating in a temperature-controlled room (typically 20°C ±1°C) is standard practice in precision grinding facilities.
Grinding Wheel Condition and Dressing
A worn or improperly dressed wheel is one of the fastest ways to lose accuracy. The wheel must be dressed regularly with a diamond dresser to maintain a consistent cutting profile. Dressing interval depends on material hardness and wheel type, but as a rule of thumb, wheels used for precision grinding are typically dressed every 5–20 parts or whenever surface finish degrades beyond specification. CNC machines with in-process gauging can trigger automatic re-dressing when dimensional drift exceeds a set threshold.
In-Process Gauging and Closed-Loop Feedback
Modern CNC cylindrical grinders often integrate air gauging or contact probing systems that measure the workpiece diameter in real time while grinding continues. This closed-loop system allows the machine to make infeed corrections automatically, compensating for wheel wear and thermal effects. In-process gauging systems can maintain tolerances to within ±0.001 mm across a full production run without operator intervention — a significant advantage over manual measurement cycles.
Workpiece Fixturing and Centering
For between-center grinding, center hole quality is critical. A poorly reamed center with even 0.005 mm runout will directly corrupt the finished part's roundness. Workholding must also be rigid — any vibration from chuck jaws or steady rests will appear as chatter marks on the surface, raising Ra values and defeating dimensional control efforts.
OD vs. ID Cylindrical Grinding: Accuracy Differences
External (OD) and internal (ID) cylindrical grinding operate under different physical constraints, which affects the achievable accuracy.
- OD grinding benefits from a larger wheel-to-part contact geometry, greater rigidity, and easier coolant delivery. Tolerances of ±0.001 mm are routinely achieved.
- ID grinding uses small-diameter wheels (sometimes under 10 mm) that deflect under cutting forces. The effective stiffness is much lower, and achievable tolerances are typically ±0.002–0.003 mm in standard conditions. High-speed spindles (up to 150,000 RPM) help compensate by reducing chip load per abrasive grain.
For bore grinding in small diameters — for example, a 6 mm bore in hardened steel — maintaining roundness within 1 µm is extremely challenging and requires ultra-precision spindle systems and vibration-isolated mountings.
How CNC Control Contributes to Accuracy
The CNC controller is not merely a motion sequencer — it plays an active role in maintaining accuracy throughout the process:
- Linear scale feedback: High-end machines use glass scale encoders with resolutions of 0.1 µm or finer, providing position feedback far more accurate than rotary encoders alone.
- Multi-axis interpolation: For taper or contour grinding, simultaneous X/Z axis control with sub-micron interpolation resolution is essential.
- Spark-out cycles: The CNC can be programmed to continue rotating the workpiece without further infeed until the grinding spark-out disappears, ensuring that elastic deflection from the grind force has fully relaxed before measurement.
- Automatic compensation: Wheel wear compensation tables and thermal offset corrections keep the process centered without manual intervention.
Real-World Application Benchmarks
The following examples illustrate the accuracy levels achieved in specific industries using CNC cylindrical grinding:
| Industry | Typical Component | Required Tolerance | Surface Finish (Ra) |
|---|---|---|---|
| Automotive | Camshaft, crankshaft journal | ±0.003 mm | 0.2–0.4 µm |
| Aerospace | Turbine shaft, landing gear pin | ±0.001 mm | 0.1–0.2 µm |
| Bearing Manufacturing | Inner and outer races | ±0.0005 mm | 0.05–0.1 µm |
| Medical Devices | Surgical implant shafts | ±0.002 mm | 0.1 µm or better |
| Tooling | Punch and die shanks | ±0.002–0.005 mm | 0.2–0.4 µm |
Common Causes of Accuracy Loss in Practice
Even well-maintained machines can underperform if process discipline is lacking. The most frequent sources of accuracy degradation include:
- Inadequate warm-up time: Machines not allowed to thermally stabilize before production grinding will drift by several microns within the first hour of operation.
- Contaminated coolant: Coolant loaded with swarf particles causes inconsistent chip flushing and can embed abrasive particles in the workpiece surface.
- Wheel imbalance: An unbalanced grinding wheel generates vibration at spindle frequency, causing waviness on the workpiece surface. Dynamic balancing should be performed after every dressing cycle on precision applications.
- Worn slideways: Linear guideways or hydrostatic slides that have lost preload contribute to positioning error and backlash, undermining infeed precision.
- Incorrect grinding parameters: Excessive infeed rate or wheel speed mismatch for the workpiece material leads to thermal damage (burn) and residual stress, which causes dimensional distortion after the part cools.
How to Verify and Validate Grinding Accuracy
Achieving high accuracy is only half the challenge — verifying it reliably is equally important. Common metrology tools used after CNC cylindrical grinding include:
- Air gauging: Non-contact measurement capable of resolving 0.1 µm; widely used for in-process and post-process diameter checks on production lines.
- Roundness testers (form measurement): Spindle-based instruments that measure roundness deviation with nanometer-level resolution; essential for bearing and precision shaft inspection.
- Surface profilometers: Contact or optical instruments that quantify Ra, Rz, and other surface texture parameters to confirm finish specifications.
- CMM (Coordinate Measuring Machine): Used for geometric tolerancing (cylindricity, concentricity, runout) on complex or high-value parts.
For volume production, Statistical Process Control (SPC) is applied to monitor dimensional trends over time, allowing process corrections before parts go out of tolerance — rather than discovering rejects after the fact.
